| 产品特性：电子负载 | 是否进口：否 | 产地：美国 |
| 加工定制：否 | 品牌：Agilent/安捷伦 | 型号：N3300A |
| 测量范围：6 | 测量精度：75 | 产品用途：88 |
二手N3300A直流电子负载|Agilent N3300A 二手N3300A直流电子负载|Agilent N3300A
N3300A中文简介：
Agilent N3300A/安捷伦N3300A
1800瓦直流电子负载主机
安捷伦N3300A是一个全机架宽的主机，6插槽，接受N330x用户安装的加载模块（150 W至600 W），方便的系统配置和未来的重新配置组合。 N3300A可容纳多达6个N3302A，N3303A，N3304A和N3307A加载模块，或*多三个N330***和N3306A加载模块，允许的总功率达1800瓦的。
*额定输入
·工作范围：100 - 250 VAC，48 - 63赫兹
·输入电流：4.2 A 100 - 127 VAC，2.2 A 200 - 250 VAC
·输入VA：440 VA
·突波电流：38 A
*工作温度范围
· 0 C至55 C
英文简介：

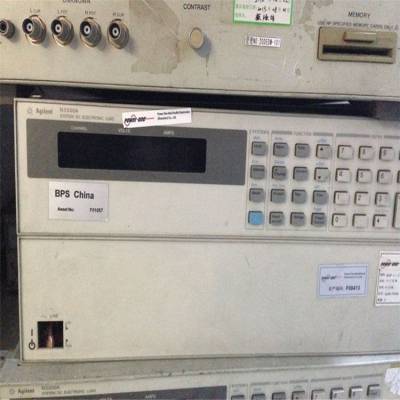

Agilent N3300A
1800 Watt DC Electronic Load Mainframe
Agilent N3300A is a full-rack width mainframe with 6-slots that accepts combinations of N330x user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration. The N3300A holds up to six N3302A, N3303A, N3304A, and N3307A load modules, or up to three N330*** and N3306A load modules, allowing up to 1,800 watts of total maximum power.
A single GPIB address is all you need for complete control and read-back of all load modules within a single N3300A mainframe. The N330xA Series of DC electronic loads provides fast operation and the accurate programming and read-back needed for high-volume DC power supply test systems.
* Input Ratings
o Operating range: 100 - 250 Vac; 48 - 63 Hz
o Input Current: 4.2 A @ 100 - 127 Vac; 2.2 A @ 200 - 250 Vac
o Input VA: 440 VA
o Inrush Current: 38 A
* Operating Temperature Range
o 0 C to 55 C
